一直觉得博客缺点东西,最近还是发现了,当博客慢慢多起来的时候想要找一篇之前写的博客很是麻烦,于是作为后端开发的楼主觉得自己动手丰衣足食,也就有了这次博客全文检索功能Elasticsearch实战,这里还要感谢一下‘辉哥’赞助的一台服务器。

全文检索工具选型

众所周知,支持全文检索的工具有很多,像 Lucene,solr, Elasticsearch 等,相比于其他的工具,显然 Elasticsearch 社区更加活跃,遇到问题相对来说也比较好解决,另外 Elasticsearch 提供的restful接口操作起来还是比较方便的,这也是楼主选择 Elasticsearch 的重要原因,当然 Elasticsearch 占据的内存相对来说比较大一点,楼主2G的云服务器跑起来也是捉襟见肘。

数据迁移,从 MySQL 到 Elasticsearch

这个功能相对来说比较简单,就是定时从 MySQL 更新数据到 Elasticsearch 中,本来楼主打算自己写一个数据迁移的工具,但是想起之前楼主做数据迁移时用到的DataX很是不错,看了写官方文档还是支持的,但是楼主硬是没有跑起来,原因就是楼主2G内存的云服务器不够使啊,DataX光是跑起来就要1G多的内存,所以楼主只能另谋它法。对DataX感兴趣的小伙伴可以看看楼主的另一篇文章阿里离线数据同步工具 DataX 踩坑记录

说起可以省内存的语言,小伙伴可能会想到最近比较火的golang,没错楼主也想到了。最后楼主使用的就是一个叫go-mysql-elasticsearch的工具,就是使用golang实现的从 MySQL 将数据迁移到 Elasticsearch 的工具。具体搭建过程楼主不在这里细说,感兴趣的小伙伴请移步go-mysql-elasticsearch,另外 Elasticsearch 环境的搭建,需要注意的就是安装 Elasticsearch 的机器内存应该大于或者等于2G,否则可能会出现起不起来的情况,楼主也不在这里赘述了,比较简单,请小伙伴们自行google。

另外需要注意的是,在使用 go-mysql-elasticsearch 的时候应该开启mysql的binlog功能,go-mysql-elasticsearch的实现同步数据的思想就是将自己作为MySQL的一个slave挂载在MySQL上,这样就可以很轻松的将数据实时同步到 Elasticsearch 中,在启动 go-mysql-elasticsearch 的机器上最少应该有MySQL client工具,否则会启动报错。楼主的建议是根MySQL部署在同一台机器上,因为golang耗费内存极少,并不会有太大影响。下面给出楼主同步数据时 go-mysql-elasticsearch 的配置文件:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
# MySQL address, user and password
# user must have replication privilege in MySQL.
my_addr = "127.0.0.1:3306"
my_user = "root"
my_pass = "******"
my_charset = "utf8"

# Set true when elasticsearch use https
#es_https = false
# Elasticsearch address
es_addr = "127.0.0.1:9200"
# Elasticsearch user and password, maybe set by shield, nginx, or x-pack
es_user = ""
es_pass = ""

# Path to store data, like master.info, if not set or empty,
# we must use this to support breakpoint resume syncing.
# TODO: support other storage, like etcd.
data_dir = "./var"

# Inner Http status address
stat_addr = "127.0.0.1:12800"

# pseudo server id like a slave
server_id = 1001

# mysql or mariadb
flavor = "mysql"

# mysqldump execution path
# if not set or empty, ignore mysqldump.
mysqldump = "mysqldump"

# if we have no privilege to use mysqldump with --master-data,
# we must skip it.
#skip_master_data = false

# minimal items to be inserted in one bulk
bulk_size = 128

# force flush the pending requests if we don't have enough items >= bulk_size
flush_bulk_time = "200ms"

# Ignore table without primary key
skip_no_pk_table = false

# MySQL data source
[[source]]
schema = "billboard-blog"

# Only below tables will be synced into Elasticsearch.
tables = ["content"]
# Below is for special rule mapping
[[rule]]
schema = "billboard-blog"
table = "content"
index = "contentindex"
type = "content"

[rule.field]
title="title"
blog_desc="blog_desc"
content="content"


# Filter rule
[[rule]]
schema = "billboard-blog"
table = "content"
index = "contentindex"
type = "content"

# Only sync following columns
filter = ["title", "blog_desc", "content"]

# id rule
[[rule]]
schema = "billboard-blog"
table = "content"
index = "contentindex"
type = "content"
id = ["id"]

实现全文检索功能的服务

要想实现全文检索的功能并对外提供服务,web服务必不可少,楼主使用Spring Boot搭建web服务,对Spring Boot感兴趣的小伙伴也可以看一下楼主的另一篇文章,使用Spring Boot实现博客统计服务。好了废话不多说了,请看代码

接口实现代码,代码比较简单就是接收参数,调用service代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

@ApiOperation(value="全文检索接口", notes="")
@ApiImplicitParam(name = "searchParam", value = "博客搜索条件(作者,描述,内容,标题)", required = true, dataType = "String")
@RequestMapping(value = "/get_content_list_from_es", method = RequestMethod.GET)
public ResultCode<List<ContentsWithBLOBs>> getContentListFromEs(String searchParam) {
ResultCode<List<ContentsWithBLOBs>> resultCode = new ResultCode();
try {
LOGGER.info(">>>>>> method getContentListFromEs request params : {},{},{}",searchParam);
resultCode = contentService.getContentListFromEs(searchParam);
LOGGER.info(">>>>>> method getContentListFromEs return value : {}",JSON.toJSONString(resultCode));
} catch (Exception e) {
e.printStackTrace();
resultCode.setCode(Messages.API_ERROR_CODE);
resultCode.setMsg(Messages.API_ERROR_MSG);
}
return resultCode;
}

service代码实现,这里代码主要功能就是调用es的工具类,对博客描述,作者,博客标题,博客内容进行全文检索。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

@Override
public ResultCode<List<ContentsWithBLOBs>> getContentListFromEs(String searchParam) {
ResultCode resultCode = new ResultCode();

// 校验参数,参数不能为空
if (StringUtils.isBlank(searchParam)) {
LOGGER.info(">>>>>> params not be null");
resultCode.setMsg(Messages.INPUT_ERROR_MSG);
resultCode.setCode(Messages.INPUT_ERROR_CODE);
return resultCode;
}

String matchStr = "blog_desc=" + searchParam;
List<Map<String, Object>> result = ElasticsearchUtils.searchListData(BillboardContants.ES_CONTENT_INDEX,BillboardContants.ES_CONTENT_TYPE,BillboardContants.ES_CONTENT_FIELD,true,matchStr);

matchStr = "author=" + searchParam;
result.addAll(ElasticsearchUtils.searchListData(BillboardContants.ES_CONTENT_INDEX,BillboardContants.ES_CONTENT_TYPE,BillboardContants.ES_CONTENT_FIELD,true,matchStr));

matchStr = "title=" + searchParam;
result.addAll(ElasticsearchUtils.searchListData(BillboardContants.ES_CONTENT_INDEX,BillboardContants.ES_CONTENT_TYPE,BillboardContants.ES_CONTENT_FIELD,true,matchStr));

matchStr = "content=" + searchParam;
result.addAll(ElasticsearchUtils.searchListData(BillboardContants.ES_CONTENT_INDEX,BillboardContants.ES_CONTENT_TYPE,BillboardContants.ES_CONTENT_FIELD,true,matchStr));

List<ContentsWithBLOBs> data = JSON.parseArray(JSON.toJSONString(result),ContentsWithBLOBs.class);
LOGGER.info("es return data : {}",JSON.toJSONString(result));
resultCode.setData(data);
return resultCode;
}

楼主用到的es的工具类代码实现,就是使用es的java客户端对es进行检索。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108

/**
* 使用分词查询
*
* @param index 索引名称
* @param type 类型名称,可传入多个type逗号分隔
* @param fields 需要显示的字段,逗号分隔(缺省为全部字段)
* @param matchPhrase true 使用,短语精准匹配
* @param matchStr 过滤条件(xxx=111,aaa=222)
* @return
*/
public static List<Map<String, Object>> searchListData(String index, String type, String fields, boolean matchPhrase, String matchStr) {
return searchListData(index, type, 0, 0, null, fields, null, matchPhrase, null, matchStr);
}

/**
* 使用分词查询
*
* @param index 索引名称
* @param type 类型名称,可传入多个type逗号分隔
* @param startTime 开始时间
* @param endTime 结束时间
* @param size 文档大小限制
* @param fields 需要显示的字段,逗号分隔(缺省为全部字段)
* @param sortField 排序字段
* @param matchPhrase true 使用,短语精准匹配
* @param highlightField 高亮字段
* @param matchStr 过滤条件(xxx=111,aaa=222)
* @return
*/
public static List<Map<String, Object>> searchListData(String index, String type, long startTime, long endTime, Integer size, String fields, String sortField, boolean matchPhrase, String highlightField, String matchStr) {

SearchRequestBuilder searchRequestBuilder = client.prepareSearch(index);
if (StringUtils.isNotEmpty(type)) {
searchRequestBuilder.setTypes(type.split(","));
}
BoolQueryBuilder boolQuery = QueryBuilders.boolQuery();

if (startTime > 0 && endTime > 0) {
boolQuery.must(QueryBuilders.rangeQuery("processTime")
.format("epoch_millis")
.from(startTime)
.to(endTime)
.includeLower(true)
.includeUpper(true));
}

//搜索的的字段
if (StringUtils.isNotEmpty(matchStr)) {
for (String s : matchStr.split(",")) {
String[] ss = s.split("=");
if (ss.length > 1) {
if (matchPhrase == Boolean.TRUE) {
boolQuery.must(QueryBuilders.matchPhraseQuery(s.split("=")[0], s.split("=")[1]));
} else {
boolQuery.must(QueryBuilders.matchQuery(s.split("=")[0], s.split("=")[1]));
}
}

}
}

// 高亮(xxx=111,aaa=222)
if (StringUtils.isNotEmpty(highlightField)) {
HighlightBuilder highlightBuilder = new HighlightBuilder();

//highlightBuilder.preTags("<span style='color:red' >");//设置前缀
//highlightBuilder.postTags("</span>");//设置后缀

// 设置高亮字段
highlightBuilder.field(highlightField);
searchRequestBuilder.highlighter(highlightBuilder);
}


searchRequestBuilder.setQuery(boolQuery);

if (StringUtils.isNotEmpty(fields)) {
searchRequestBuilder.setFetchSource(fields.split(","), null);
}
searchRequestBuilder.setFetchSource(true);

if (StringUtils.isNotEmpty(sortField)) {
searchRequestBuilder.addSort(sortField, SortOrder.DESC);
}

if (size != null && size > 0) {
searchRequestBuilder.setSize(size);
}

//打印的内容 可以在 Elasticsearch head 和 Kibana 上执行查询
LOGGER.info("\n{}", searchRequestBuilder);

SearchResponse searchResponse = searchRequestBuilder.execute().actionGet();

long totalHits = searchResponse.getHits().totalHits;
long length = searchResponse.getHits().getHits().length;

LOGGER.info("共查询到[{}]条数据,处理数据条数[{}]", totalHits, length);

if (searchResponse.status().getStatus() == 200) {
// 解析对象
return setSearchResponse(searchResponse, highlightField);
}

return null;

}

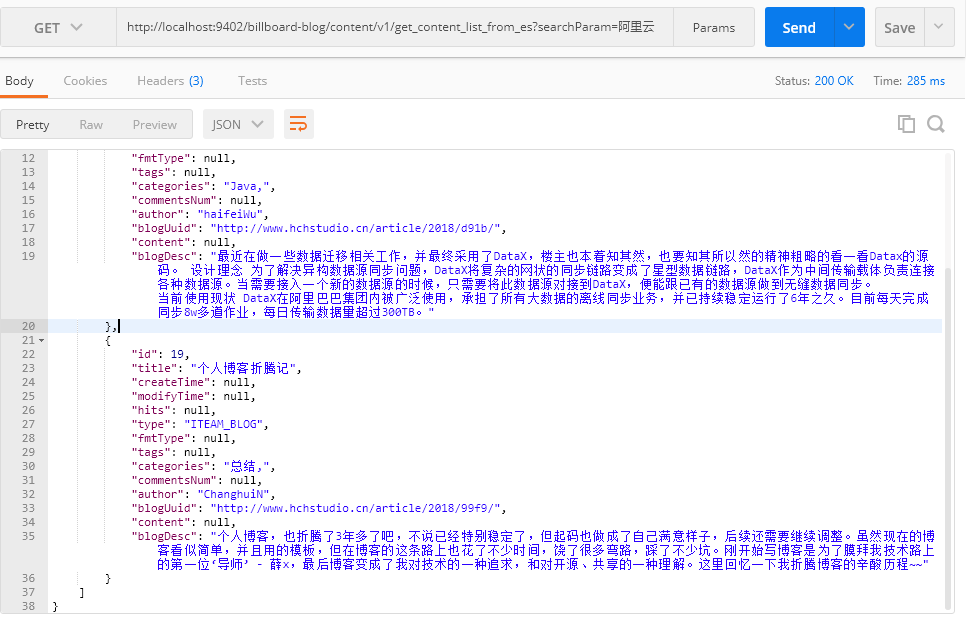

最后,楼主使用postman测试web服务,如下图所示:

postman图

过程中遇到的坑

IK分词器的设置

这里需要注意的是,Elasticsearch的版本一定要与ik分词器的版本对应,不对应的话 Elasticsearch 会报错的。

1
$ ./bin/elasticsearch-plugin install https://github.com/medcl/elasticsearch-analysis-ik/releases/download/v6.3.0/elasticsearch-analysis-ik-6.3.0.zip

接着,重新启动 Elastic,就会自动加载这个新安装的插件。

然后,新建一个 Index,指定需要分词的字段。这一步根据数据结构而异,下面的命令只针对本文。基本上,凡是需要搜索的中文字段,都要单独设置一下。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
$ curl -X PUT 'localhost:9200/contentindex'  -H 'Content-Type: application/json' -d '
{
"mappings": {
"content": {
"properties": {
"content": {
"type": "text",
"analyzer": "ik_max_word",
"search_analyzer": "ik_max_word"
},
"title": {
"type": "text",
"analyzer": "ik_max_word",
"search_analyzer": "ik_max_word"
},
"blog_desc": {
"type": "text",
"analyzer": "ik_max_word",
"search_analyzer": "ik_max_word"
},
"author": {
"type": "text",
"analyzer": "ik_max_word",
"search_analyzer": "ik_max_word"
}
}
}
}
}'

上面代码中,首先新建一个名称为contentindex的 Index,里面有一个名称为content的 Type。content有好多个字段,这里只为其中四个字段指定分词,contenttitleblog_descauthor

这四个字段都是中文,而且类型都是文本(text),所以需要指定中文分词器,不能使用默认的英文分词器。

MySQL binlog的设置

因为楼主运行 go-mysql-elasticsearch 的时候使用的MySQL的客户端跟要导出数据的MySQL server端的版本不一致导致报错,最终在 go-mysql-elasticsearch 原作者的帮助下解决,所以一定要使用同版本的MySQL server 与client,因为不同版本的MySQL特性不一样,也就导致了 go-mysql-elasticsearch 导出数据有略微的不同。

小结

整个过程相对来说比较简单,当然楼主通过这个功能的实现,也对es有了一个相对的认识,学习了一项新的技能,可能有的小伙伴对楼主的整个工程的代码比较感兴趣,暂时先不能透露,等楼主完善好了一并贡献出来。

参考文章
